Sunday, February 24, 2013

sUAS Platform - Ground Testing Successful

My initial series of ground tests for the small unmanned aerial system (sUAS) research were highly successful.

Stage 1 - Control Servos Response Testing
For this stage, I was able to confirm elimination of the previously observed servo response jitter/stutter and improve timing by switching to the Pololu serial servo protocol. The difference in performance between Pololu and MiniSSC was remarkably different (see the following video):



Stage 2 - Powerplant/Tail Rotor Testing
For this stage, I was able to confirm proper response of the electronic speed control (ESC), brushless motor, gyroscope, and tail rotor. To improve safety, I removed the main blades and left the flybar paddles in place (see the following video):


Stage 3 - Integrated Controls and Powerplant
For this final stage, I was able to confirm successful integration of all the controls and the availability of sufficient power for operation. I connected all controls, applied maximum/minimum control limits (5% for cyclic pitch/roll, 50% for throttle/collective pitch, and 25% for tail rotor), connected power, and interfaced with PC control (i.e., ground control station [GCS]; see the following video):


After wrapping the final video I did achieve a brief airborne hop with a slight adjustment to the collective pitch limit (increased to approximately 60% of available movement, no throttle change was necessary). I am highly confident at this stage that the platform is ready for aerial testing activities and will fly with the increased weight of the custom developed landing gear. However, before I initiate aerial testing I will need to confirm the weight and balance (i.e., center of gravity [CG]) of the sUAS. Check back soon for more updates.

Friday, February 22, 2013

sUAS Platform Ready for Ground Testing

This week I was able to make considerable gains in improving the resolution of the servo movement. I also put some work into preparing the helicopter for ground testing by wrapping and securing all of the electronics and the associated wiring. I decided to replace the stock landing gear and create my own using carbon fiber gear from a fixed-wing platform and some 1/2" PVC tubing. I expect this new landing gear will help distribute some of the weight during the testing and provide sufficient clearance for the addition of a high-definition first person view (FPV) camera and pan/tilt control assembly in the future.
sUAS Platform (angled view)
sUAS Platform (head-on view)

sUAS Platform with cowling removed

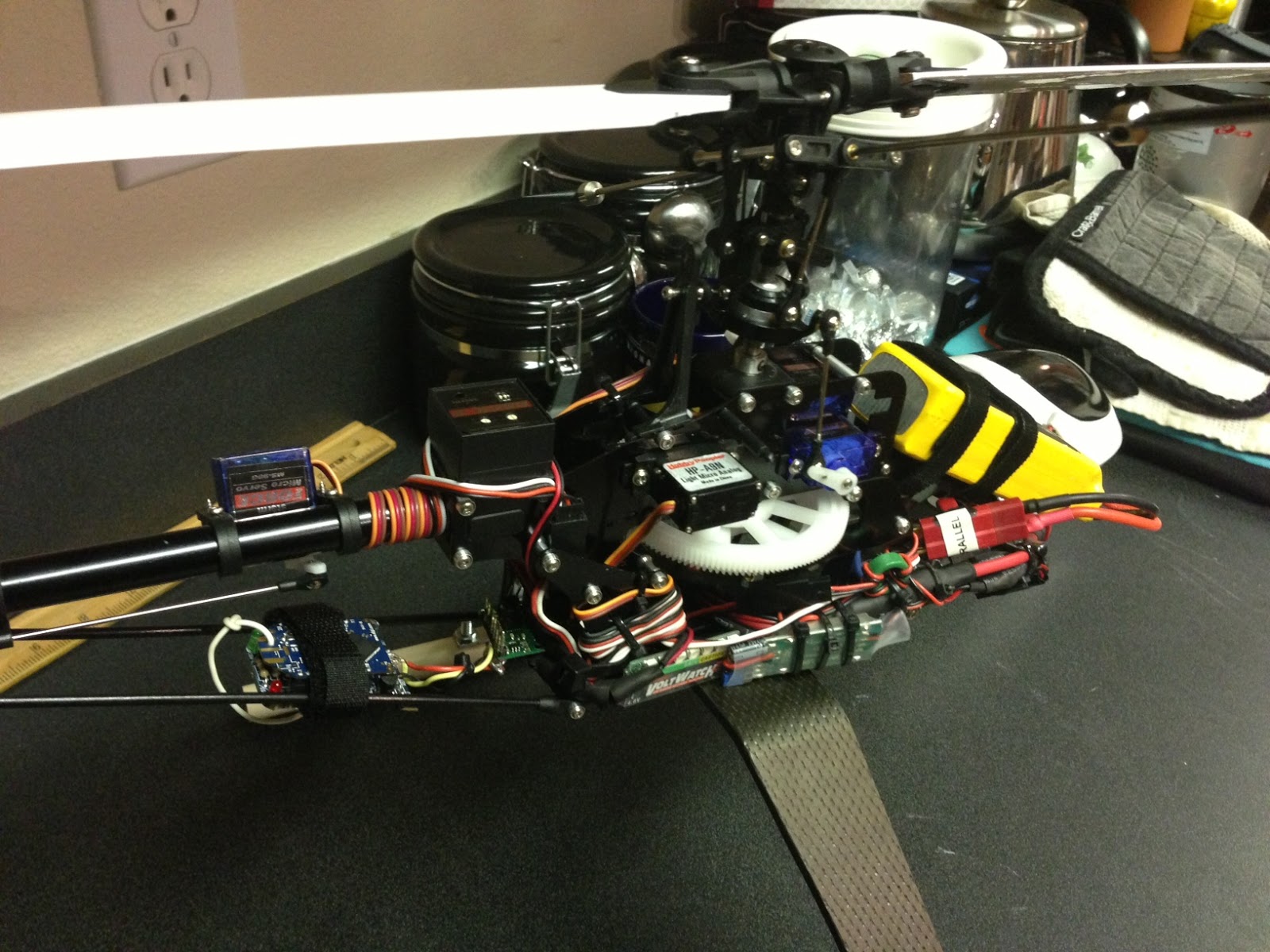

sUAS Platform (electronics exposed)

Sunday, February 10, 2013

Phase I: Two-Person Supervisory Control of sUAS Research

I am happy to report I have managed to successfully integrate the three 120-degree Cyclic/Collective Pitch Mixing (CCPM) servos of my small unmanned aerial system (sUAS) platform (Storm 430 R/C Electric Helicopter) with my custom developed wireless PC servo control system. This intitial step was a big breakthrough as it proves the software that provides wireless PC, USB gamecontroller, and CCPM servo control does work as required. I still need to fine tune some of the controls and smooth out some slight stuttering, which could lead to adverse operation when in flight. Nonetheless, I was very happy to reach this milestone in development.

















The next step in this process will be connect the tail rotor servo and gyroscope for yaw control. Once I have connected the remaining controls (e.g., engine throttle) and fine tuned the movements, I will be ready for an initial flight test. Upon succesful completion of the flight testing I will proceed onto Phases II-VI, as described below:

Phase II
1) Construct supervisory control unit (SCU)
2) Integrate SCU into the sUAS platform to provide primary vehicle control (PVC) and secondary supervisory control (SSC) of the system
3) Confirm capability of SSC system to relinquish control to the PVC and regain as needed (i.e., when SSC controls are engaged)

Phase III
1) Purchase first person view (FPV) visual system
2) Integrate FPV visual system into sUAS platform and base station (i.e., laptop and monitor)
3) Confirm capability to operate the sUAS from an egocentric viewpoint (i.e., video from the sUAS view) using PVC system, with secondary operator providing supervisory control using SSC

Phase IV
1) Purchase onscreen display (OSD) system (see example OSD)
2) Integrate OSD system with FPV subsystem on the sUAS platform
3) Confirm capability to monitor location (GPS coordinates and return to home indicator), altitude, airspeed, and battery voltage using OSD and FPV system

Future Upgrade
At the completion of Phase IV, the sUAS will be fully operational as designed for this research application (proof of concept two-person supervisory control system). With future funding opportunities, I hope to upgrade the sUAS to support additional research with the following:
  • Nine-degree of freedom (9-DOF) inertial measurement unit (IMU; see example 9-DOF IMU) to measure x, y, and z accelerations, x, y, and z rotations, and x, y, and z magnetic heading readings to provide accurate orientation state (pitch, roll, yaw relative to Earth and magnetic north)
  • Range finder sensors for x+, x-, y+, y-, z+, and z- to provide accurate distancing
  • Onboard PC for increased injteroperability and calculation capability to support autopilot functionality (i.e., increased autonomy and simplified user control routines; see example single-board PC)
I'm also happy to report, this past Wednesday I earned a Technician Class Amateur Radio License. Once my name and callsign appear in the Federal Communication Commission (FCC) Universal Licensing System (ULS) database, I will be able to operate FPV and radio communications gear to support sUAS and R/C operations. Check back for future updates of this ongoing research project.

12 Feb 2013 Update: I've been able to improve the resolution by increasing the communicatio Baud Rate from 9600 to 57600. I've also added in the tail rotor/gyro control. Here is a link to a video update (Updated sUAS Control): http://www.youtube.com/watch?v=c51dKZpmcAk
